Tandem Engine

Long-Running Multi-Workflow Goals

Use a long-running goal when one durable objective must move through several Automation V2 workflows, preserve lineage and artifacts between them, wait for external decisions, and loop through verification and replanning without turning the whole operation into one oversized run.

Agent search terms: long-running goal, multi-workflow orchestration, goal projection, workflow handoff, orchestration version, goal replay, replan loop, goal action, goal budget, cross-run artifact.

Choose the correct boundary

Section titled “Choose the correct boundary”
NeedReleased runtime boundary
Parallel or dependent steps that share one checkpointOne Automation V2 run
Timer, approval, webhook, or external-condition pause inside a workflowA typed Automation V2 wait; wake and continue the same run
Move from Plan to Execute, Execute to Verify, or Replan back to ExecuteA named orchestration transition; commit a handoff and create a new downstream run
Finish at a terminal orchestration nodeSettle completion; no downstream run is created
Inspect current and historical operator stateRead the canonical goal projection in live or replay mode

An orchestration does not merge workflow checkpoints. Each workflow run keeps its own frozen definition snapshot, outputs, retries, waits, and recovery state. The goal supplies durable lineage across those runs.

flowchart LR
  G["Goal"] --> P["Plan workflow run"]
  P -- "planned + plan artifact" --> E["Execute workflow run"]
  E -- "executed + result artifact" --> V["Verify workflow run"]
  V -- "verified + evidence" --> C["Complete terminal"]
  V -- "replan + findings" --> R["Replan workflow run"]
  R -- "replanned + revised plan" --> E
  P -. "timer / approval / webhook wait" .-> P
  E -. "timer / approval / webhook wait" .-> E

The dotted paths are same-run waits. The solid workflow-to-workflow paths are new-run transitions linked by GoalRunLink.parent_run_id and triggering_handoff_id.

Lifecycle and versions

Section titled “Lifecycle and versions”
  1. Create or update Automation V2 definitions for Plan, Execute, Verify, and Replan.
  2. Create orchestration draft version = 0. Drafts may be incomplete while edited.
  3. Refresh workflow references to pin each workflow node to its current same-tenant definition hash.
  4. Validate graph structure, artifact contracts, tenant scope, and workflow reference freshness.
  5. Publish the next immutable orchestration version.
  6. Start a goal from that version, or omit the version to select the latest published version at start time.
  7. Operate the goal through waits, named transitions, approvals, completion, projection actions, and recovery.

A running goal remains pinned to its stored orchestration_version and to the workflow hashes captured at publication. Editing draft v0 or publishing a newer version does not migrate an active goal. Start a new goal to adopt the new version.

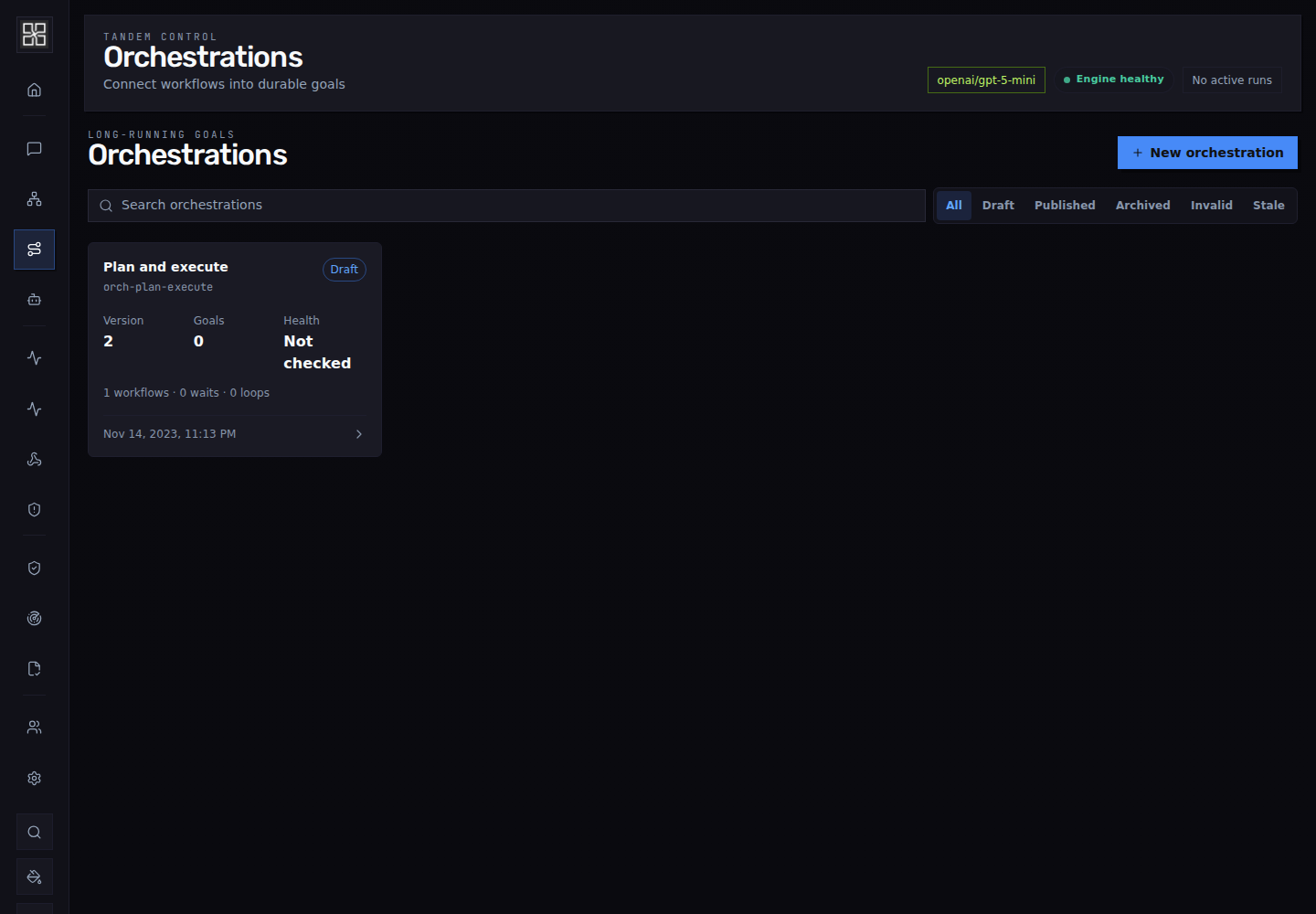

The Orchestrations library showing a draft with published version history

Open a library entry to author its graph, inspect workflow and wait nodes, validate references, preview transitions, publish an immutable version, and start a goal.

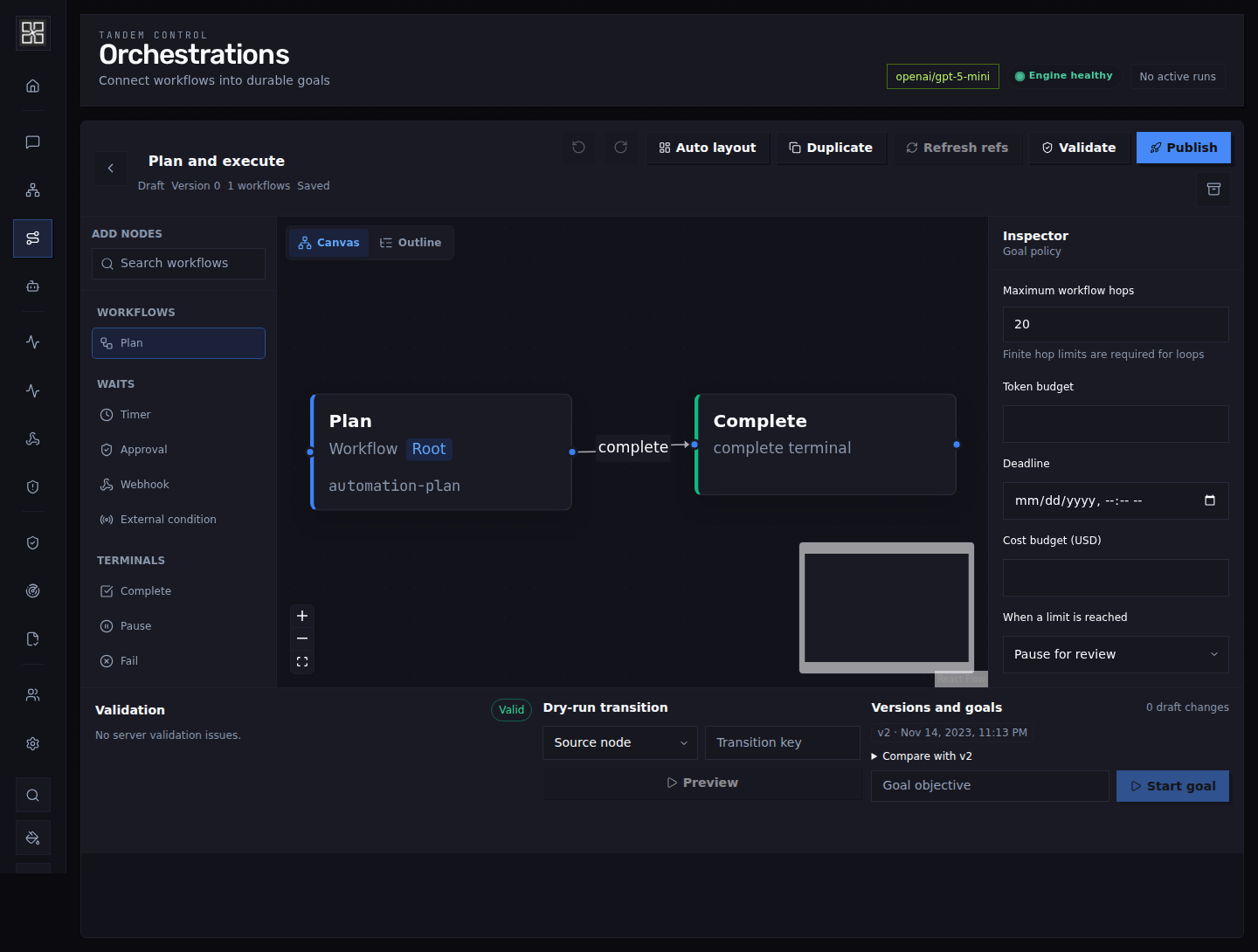

The visual orchestration Studio with workflow nodes, a terminal, policy controls, validation, and version history

Draft updates use expected_updated_at_ms as an optimistic concurrency token. Published versions are immutable. Use listVersions() and getVersion() for release history, and staleReferences() before publishing after any referenced workflow changes.

Complete TypeScript example

Section titled “Complete TypeScript example”

This example assumes four Automation V2 definitions already exist with IDs goal-plan, goal-execute, goal-verify, and goal-replan. Their internal DAGs may contain typed waits; orchestration transitions happen only after the active workflow is ready to hand off or settle.

import { TandemClient } from "@frumu/tandem-client";


const client = new TandemClient({
  baseUrl: process.env.TANDEM_ENGINE_URL ?? "http://127.0.0.1:39731",
  token: process.env.TANDEM_ENGINE_TOKEN!,
});


const orchestrationId = "delivery-loop";


const created = await client.orchestrations.create({
  orchestration_id: orchestrationId,
  name: "Goal -> Plan -> Execute -> Verify -> Replan",
  description: "Deliver verified work, replanning until verification passes.",
  root_node_id: "plan",
  nodes: [
    {
      node_id: "plan",
      name: "Plan",
      position: { x: 0, y: 0 },
      kind: "workflow",
      automation_id: "goal-plan",
      allowed_transition_keys: ["planned"],
      emits_artifact_types: ["execution-plan"],
    },
    {
      node_id: "execute",
      name: "Execute",
      position: { x: 240, y: 0 },
      kind: "workflow",
      automation_id: "goal-execute",
      allowed_transition_keys: ["executed"],
      accepts_artifact_types: ["execution-plan"],
      emits_artifact_types: ["execution-result"],
    },
    {
      node_id: "verify",
      name: "Verify",
      position: { x: 480, y: 0 },
      kind: "workflow",
      automation_id: "goal-verify",
      allowed_transition_keys: ["verified", "replan"],
      accepts_artifact_types: ["execution-result"],
      emits_artifact_types: ["verification-evidence", "verification-findings"],
    },
    {
      node_id: "replan",
      name: "Replan",
      position: { x: 480, y: 180 },
      kind: "workflow",
      automation_id: "goal-replan",
      allowed_transition_keys: ["replanned"],
      accepts_artifact_types: ["verification-findings"],
      emits_artifact_types: ["execution-plan"],
    },
    {
      node_id: "complete",
      name: "Complete",
      position: { x: 720, y: 0 },
      kind: "terminal",
      outcome: "complete",
      final_artifact_type: "verification-evidence",
    },
  ],
  edges: [
    {
      edge_id: "plan-execute",
      from_node_id: "plan",
      to_node_id: "execute",
      transition_key: "planned",
      artifact_contract: { artifact_type: "execution-plan", required: true },
    },
    {
      edge_id: "execute-verify",
      from_node_id: "execute",
      to_node_id: "verify",
      transition_key: "executed",
      artifact_contract: { artifact_type: "execution-result", required: true },
    },
    {
      edge_id: "verify-complete",
      from_node_id: "verify",
      to_node_id: "complete",
      transition_key: "verified",
      artifact_contract: { artifact_type: "verification-evidence", required: true },
    },
    {
      edge_id: "verify-replan",
      from_node_id: "verify",
      to_node_id: "replan",
      transition_key: "replan",
      artifact_contract: { artifact_type: "verification-findings", required: true },
    },
    {
      edge_id: "replan-execute",
      from_node_id: "replan",
      to_node_id: "execute",
      transition_key: "replanned",
      artifact_contract: { artifact_type: "execution-plan", required: true },
    },
  ],
  goal_policy: {
    max_hops: 20,
    max_total_tokens: 2_000_000,
    max_total_cost_usd: 100,
    on_limit: "pause_for_review",
  },
  metadata: { owner: "delivery-platform" },
});


const refreshed = await client.orchestrations.refreshReferences(
  orchestrationId,
  created.updated_at_ms,
);
const validation = await client.orchestrations.validate(orchestrationId);
if (!validation.report.valid || validation.stale_references.length > 0) {
  throw new Error(JSON.stringify(validation, null, 2));
}


const preview = await client.orchestrations.dryRun(orchestrationId, {
  fromNodeId: "verify",
  transitionKey: "replan",
  artifactType: "verification-findings",
});
if (!preview.allowed) throw new Error(JSON.stringify(preview.issues));


const published = await client.orchestrations.publish(
  orchestrationId,
  refreshed.orchestration.updated_at_ms,
);
const started = await client.statefulRuntime.startGoal({
  orchestrationId,
  orchestrationVersion: published.version,
  objective: "Ship the release only after verification evidence is approved.",
  idempotencyKey: "delivery-loop:release-2026-07-12",
  metadata: { release: "2026.07.12" },
});


const goalId = started.goal.goal_id;
console.log({ goalId, rootRunId: started.root_run_id, replayed: started.replayed });


// Call this only after Plan's active run is completed. It atomically commits
// the artifact handoff and creates Execute's new run. Reusing the idempotency
// key returns the existing commit instead of creating a duplicate run.
async function handoffPlanToExecute() {
  return client.statefulRuntime.emitGoalHandoff(goalId, {
    transitionKey: "planned",
    artifact: {
      artifact_type: "execution-plan",
      value: { tasks: ["build", "test", "stage"] },
    },
    idempotencyKey: `${goalId}:plan:planned:1`,
  });
}


const live = await client.statefulRuntime.getGoalProjection(goalId, { limit: 100 });
console.log(live.mode, live.goal.current_node_id, live.workflow?.run_id, live.budgets);


// Consume only actions advertised by the latest live projection. Action IDs
// and required fields are projection data, not strings clients should invent.
const pause = live.actions.find((action) => action.kind === "pause" && action.enabled);
if (pause) {
  const paused = await client.statefulRuntime.performGoalAction(goalId, pause.id, {
    expectedUpdatedAtMs: live.goal.updated_at_ms,
    idempotencyKey: `${goalId}:operator-pause:1`,
    reason: "Hold while release evidence is reviewed",
  });
  console.log(paused.projection.mode, paused.projection.goal.status);
}


// A terminal edge is settled instead of emitted as a downstream handoff.
// Use this after Verify has completed and required review has happened in its
// Automation V2 workflow.
async function finishWithEvidence(evidencePath: string) {
  return client.statefulRuntime.settleGoalCompletion(goalId, {
    transitionKey: "verified",
    finalArtifact: {
      artifact_type: "verification-evidence",
      content_path: evidencePath,
    },
  });
}


// Reconnect-safe history and point-in-time replay use durable goal cursors.
const page = await client.statefulRuntime.listGoalEvents(goalId, {
  cursor: 0,
  limit: 250,
});
if (page.last_cursor !== null) {
  const replay = await client.statefulRuntime.getGoalProjection(goalId, {
    cursor: page.last_cursor,
    limit: 100,
  });
  console.log(replay.mode, replay.cursor, replay.historical_state.exact);
}


for await (const event of client.statefulRuntime.events(goalId, {
  cursor: page.last_cursor ?? 0,
})) {
  console.log(event.type, event.properties);
}


void handoffPlanToExecute; // Called by the driver after Plan completes.
void finishWithEvidence; // Called by the operator after Verify and review.

startGoal() is idempotent within the tenant, orchestration, and supplied key; the response sets replayed: true when the same start is returned. Transition idempotency similarly prevents duplicate downstream runs.

HTTP quick path

Section titled “HTTP quick path”

All raw HTTP payloads use snake_case. Authenticate as described in Engine Authentication For Agents.

Terminal window
BASE_URL="${TANDEM_ENGINE_URL:-http://127.0.0.1:39731}"
AUTH="authorization: Bearer ${TANDEM_ENGINE_TOKEN}"


curl -sS -X POST "$BASE_URL/goals" -H "$AUTH" -H 'content-type: application/json' -d '{
  "orchestration_id":"delivery-loop",
  "orchestration_version":1,
  "objective":"Ship only after verification passes",
  "idempotency_key":"delivery-loop:release-2026-07-12"
}'


curl -sS "$BASE_URL/goals/GOAL_ID/projection?limit=100" -H "$AUTH"


curl -sS -X POST "$BASE_URL/goals/GOAL_ID/transitions" -H "$AUTH" -H 'content-type: application/json' -d '{
  "transition_key":"replan",
  "artifact":{"artifact_type":"verification-findings","value":{"failed_checks":["integration"]}},
  "idempotency_key":"GOAL_ID:verify:replan:1"
}'


curl -sS "$BASE_URL/goals/GOAL_ID/events?cursor=0&limit=250" -H "$AUTH"

For authoring, the corresponding routes are POST /orchestrations, PUT /orchestrations/{id}, POST /orchestrations/{id}/validate, POST /orchestrations/{id}/publish, and POST /orchestrations/{id}/dry-run.

Live operations, replay, and actions

Section titled “Live operations, replay, and actions”

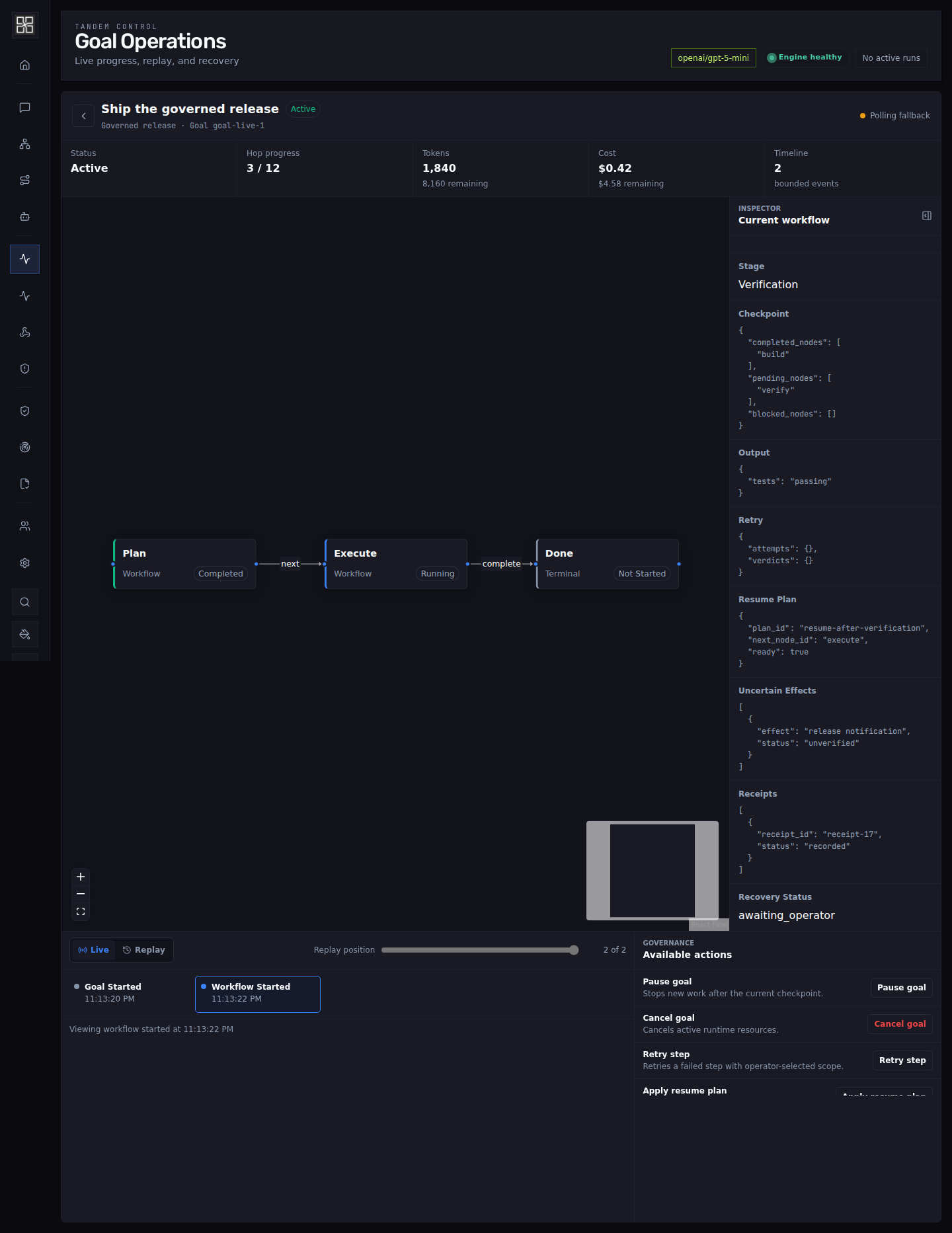

Goal Operations showing live workflow progress, the current internal stage, replay timeline, recovery evidence, and governed actions

Use GET /goals/{id}/projection as the canonical operator read model. It joins the goal, pinned orchestration graph, active workflow checkpoint, waits, handoffs, artifacts, recovery state, budgets, timeline, and currently valid actions.

  • mode: "live" describes current durable state.
  • Supplying cursor reconstructs mode: "replay" at a retained goal-event cursor. Check historical_state.exact and historical_state.source.
  • A replay projection is read-only. Return to a fresh live projection before an action.
  • Dispatch only an enabled descriptor from projection.actions. Send its id, the live goal’s updated_at_ms, a new idempotency key, and every required reason, decision, or payload field.
  • A cursor older than retained_from_cursor returns 410 projection_cursor_not_retained.
  • SSE uses durable cursors and supports Last-Event-ID or ?cursor= for reconnect. Persist the last processed cursor after handling an event.

Dedicated read and mutation routes remain useful for automation: /graph, /runs, /events, /artifacts, /budgets, /handoffs, /waits, /pause, /resume, /cancel, /transitions, and /completion.

Waits, handoffs, and artifacts

Section titled “Waits, handoffs, and artifacts”

An Automation V2 typed wait checkpoints and pauses its owning run. Resolving an external-condition wait through POST /goals/{goal_id}/waits/{wait_id}/resolve wakes that same run with a bounded payload. The resolution requires an idempotency key. Timer, approval, and correlated webhook waits follow their runtime-owned wake paths.

A named workflow-to-workflow orchestration transition validates the source node, transition key, artifact type/contract, workflow pin, tenant scope, approval policy, and goal limits. A workflow target produces a durable WorkflowHandoff, new Automation V2 run, and GoalRunLink. An approval-gated edge first returns pending_approval; approve or reject its handoff, then retry the same transition with the same idempotency key to commit or retrieve the downstream run. Terminal settlement is a separate path, so put required human review inside the Verify workflow before selecting a terminal edge.

Artifact references may carry a bounded inline value, a content_path, a content_digest, or a combination appropriate to the contract. Treat paths and digests as references, not as proof of trust. GET /goals/{id}/artifacts lists handoff artifacts and the optional final artifact; workflow checkpoint outputs remain scoped to their individual runs.

Limits

Section titled “Limits”

goal_policy is copied into the goal when it starts:

  • max_hops is required to be greater than zero and defaults to 100.
  • deadline_at_ms, max_total_tokens, and max_total_cost_usd are optional.
  • on_limit is pause_for_review or fail; the default is pause_for_review.
  • Hops are consumed by workflow-to-workflow transitions. The root run is hop zero.
  • GET /goals/{id}/budgets reports policy, consumed totals, and remaining hops, tokens, cost, and deadline time.

Goal lists default to 100 and cap at 500. Event pages default to 250 and cap at 1,000. Projection timelines default to 100 and are bounded by the server.

Recovery

Section titled “Recovery”
  1. Read a fresh live projection and the linked run record before mutating.
  2. If the active Automation V2 run failed or is blocked, use its run recovery, repair, reset-preview, retry, continue, or requeue endpoint as appropriate; these are same-run operations.
  3. Resolve a durable wait only from an authenticated, authoritative signal and reuse the source event’s stable idempotency key.
  4. Retry a transition with the original idempotency key after a timeout. Do not invent a new key until inspection proves the first commit did not happen.
  5. Use an enabled projection action for pause, resume, cancel, handoff approval, or wait resolution when one is advertised.
  6. Cancel a goal only when the objective should stop. Cancellation also settles the active run, owned waits, and unconsumed handoffs.

Replay reconstructs state for diagnosis; it does not authorize replaying MCP calls, filesystem mutations, or other external side effects. Inspect tool effect, outbox, dead-letter, and compensation state before retrying uncertain effects. See Building Stateful Workflows for the same-run recovery model.

Security and tenant isolation

Section titled “Security and tenant isolation”
  • Every orchestration, goal, run, wait, handoff, and artifact query is scoped to the authenticated tenant. Cross-tenant references fail closed.
  • Only published orchestrations can start goals, and workflow definition hashes must still match their pins when a run is created.
  • Named transitions resolve the target from the published graph. Clients never supply a target automation ID.
  • Mutation tools require the initiating owner or an authorized administrator; MCP visibility alone is not authority.
  • Keep external mutation tools on the smallest workflow/node policy and place approvals before irreversible effects.
  • Do not put secrets in objectives, metadata, inline artifacts, events, or idempotency keys. Use configured secret and credential references.

For MCP-driven agents, Tandem exposes orchestration_create_draft, orchestration_validate, orchestration_publish, goal_start, goal_get, goal_cancel, handoff_emit, handoff_approve, wait_inspect, and wait_resolve. Discover them through the normal tool inventory and preserve their tenant/owner checks. See MCP Automated Agents and MCP Capability Discovery.

The Python client mirrors the authoring and goal namespaces as client.orchestrations and client.stateful_runtime; see the Python SDK for installation and async client conventions.

Storage and migration

Section titled “Storage and migration”

The stateful orchestration store uses SQLite as the durable authority for published definitions, goals, run links, handoffs, waits, events, projection snapshots, and reliability records. In-memory Automation V2 scheduler state and compatibility files are mirrors that recover from the database after a crash.

On upgrade, the engine performs an idempotent, transactional import of legacy stateful runtime files. Source files remain untouched as migration backups, and malformed legacy handoff envelopes are quarantined rather than silently accepted. Back up the Tandem data directory before an engine migration, keep the old files until the new engine has restarted and goal projections have been verified, and do not edit SQLite or migration markers by hand. General cleanup procedures are in Storage Maintenance.

Current limitations

Section titled “Current limitations”
  • A goal starts only when the orchestration root is a workflow node.
  • Although the public orchestration schema includes kind: "wait", the current transition kernel cannot create a run for an orchestration-level wait target. Put typed waits inside an Automation V2 workflow for released same-run wait behavior.
  • Workflow-to-workflow movement is explicit through a named handoff. Completing a workflow without selecting a nonterminal transition leaves the goal waiting for the next transition.
  • A replay projection is bounded by retained event history and may be unavailable after retention pruning.
  • Artifacts are durable handoff/final references, not automatically promoted semantic memory or a globally trusted knowledge base.
  • Active goals do not hot-upgrade to later orchestration or workflow versions.

See also

Section titled “See also”
